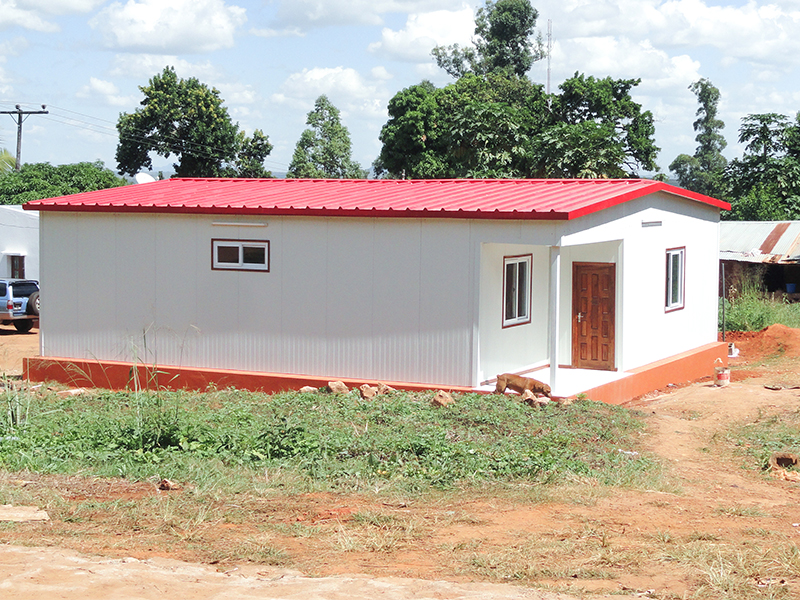

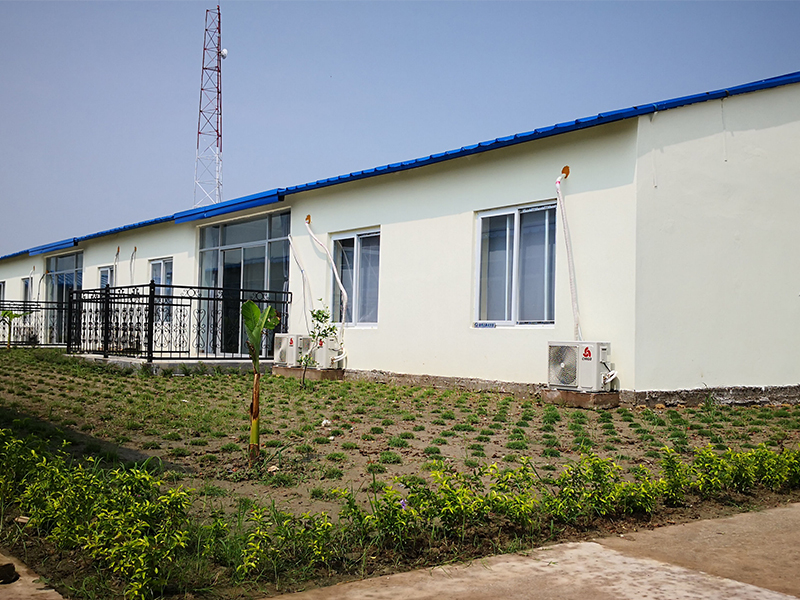

T- house is a kind of prefabricated house launched in China in the early days. It has a wide range of applications and is mainly used for temporary construction such as accommodation, office, and public buildings. It has a short processing cycle, strong wind resistance, and corrosion resistance. Climatic conditions. Its transportation is more economical, and the transportation cost can be saved by 25% compared with general frame products.
|1||Product Type||Degree of Standardization||custom-made product, designed and manufactured according to clients' requirement|
|2||Size||Length (m):||No limited, increase expansion joint when length more than 200m.|
|3||Width(m):||single span should be less than 12m, an arbitrary width could make by union spans|
|4||Heigth(m):||single floor≤5m, two or three floors, average height ≤4m|
|5||Roof slope:||slope is 1:10~1:5|
|6||Floors:||less than 3 floors|
|7||Standard equipment||Ground channel||Galvanized steel panel compression, thickness is 0.8mm|
|8||Post||Inside post is steel square pipe, the material is Q235, components surface make antirust process, and decorate with color steel compression parts.|

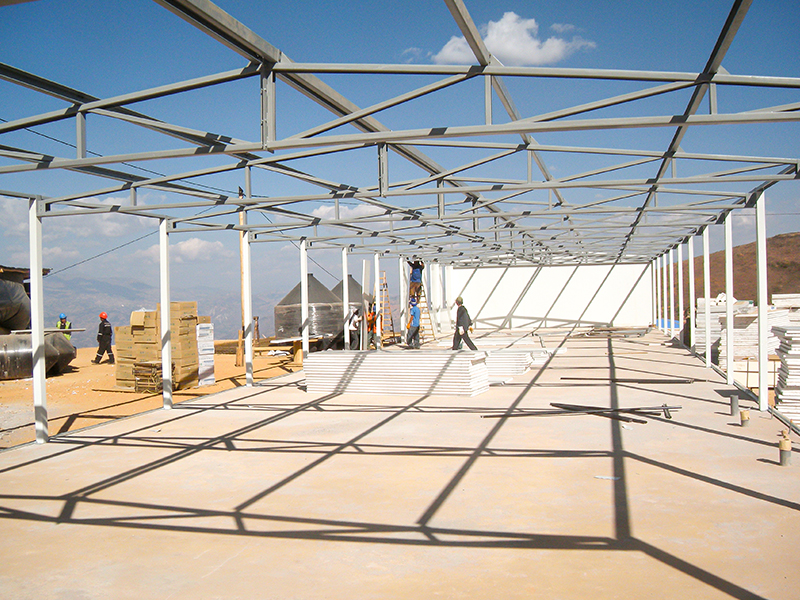

|9||Roof beam||roof truss consists of thin sharp steel by welding, component surface make the antirust process|
|10||Purlin||purlin is Ctype steel, the material is Q235, components' surface makes an antirust process.|
|11||Wall beam||wall beam is Ctype steel or square pipe, the material is Q235, component surface make the antirust process|
|12||Floor||made of floor master beam, secondary beam, and floor surface plate(plywood)|

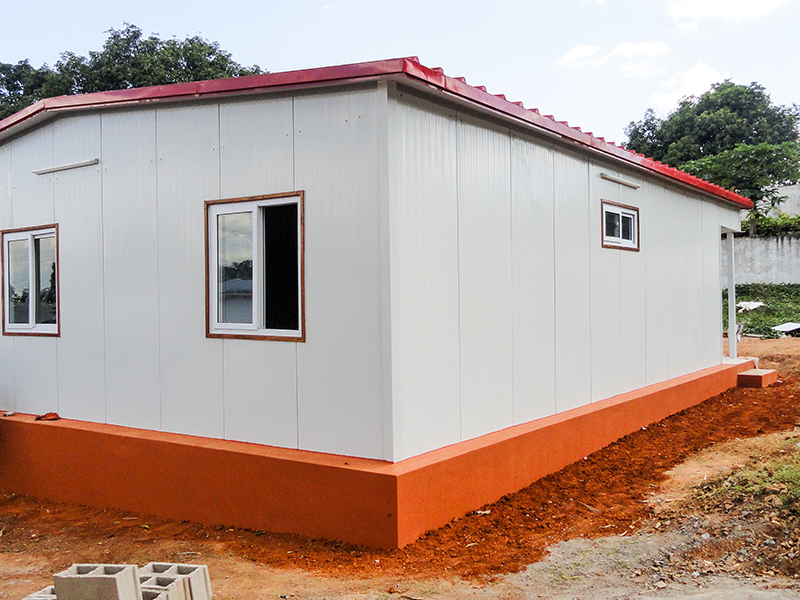

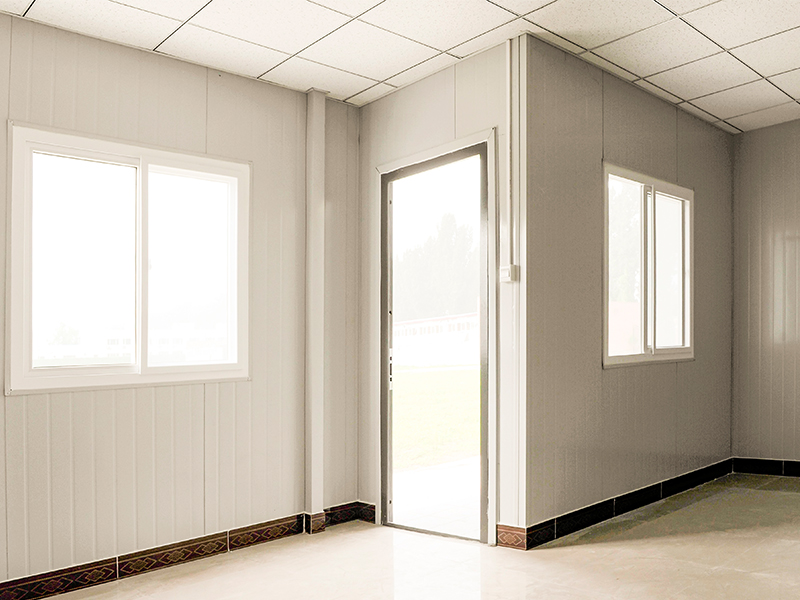

|13||wallboard||50~150mm thickness double surface color steel sandwich panel, white color|
|14||roof board||50~150mm thickness double surface color steel corrugated sandwich panel, blue or red color|
|15||door||color steel sandwich panel door,size:750mm*2000mm;|
|16||window||PVC sliding window, with steel screen.|
|17||Options||Ceiling||mineral wool acoustic panel, aluminum buckle panel, PVC ceiling|
|18||Elevation floor||Design based on local weather conditions.|

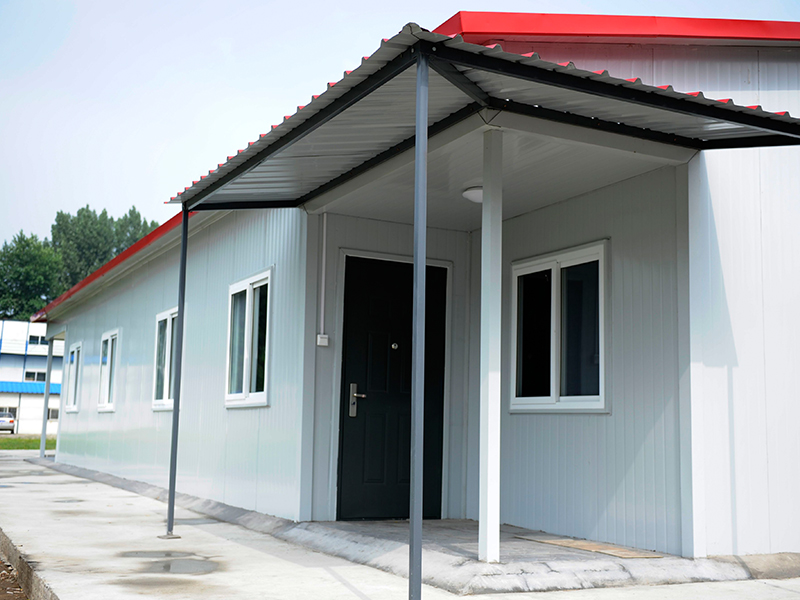

|19||Canopy||color steel sheet or color steel sandwich panel canopy|
|20||door||compound wooden door, security door, aluminum alloy door|
|21||Electrical accessories||Supply plan, design, and construction according to relevant national norms(220V,50Hz, with lamp, switches, and multi-function sockets.)|
|22||Water plumbing accessories||Supply plan, design, and construction according to relevant national norms|
|23||Sanitary ware||Supply according to customer needs|
|24||Furniture and electric appliance||Supply according to customer needs|
|25||Design technical data||Roof dead load||0.3KN/sqm|
|26||Roof live load||0.5KN/sqm|
|27||Floor dead load||0.5KN/sqm|
|28||Floor live load||2KN/sqm|
|29||Wind load||12degree,120km/h(strengthen the steel frame when the wind is bigger than this data)|
|30||Earthquake resistant intensity||8 degree|
|31||Used for temperature||Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25)|
|32||Installation||Installation tools||electric drill, electric hammer,spanner,screwdriver,pulling rivet etc, house installation need electric power.|
|33||Installation efficiency||Four skilled labor one day can erect 40m2's house body|
|34||Transport||container||each 40ft container could load 130~150Sqm house body material|
1. Reliable structure: It can resist the wind of 120KM/H.
2. Perfect anti-corrosion performance: The structure is made of hot-dip galvanized steel square tube which is much better in corrosion resistance. For the economic type, we may consider the steel tube to be covered by Zinc-rich epoxy paint for anti-corrosion treatment
3. Short processing time: The mechanical mass production is easy to shorten the processing cycle.
4. Excellent sealing performance: The structures are hidden in the house and outer panels maintain a seamless connection with the tongue and groove system.
5. Easy installation: The main structures are connected by bolts and nuts, which greatly shorten the construction period.
6. Flexible design: It can be personalized according to customer demand.
