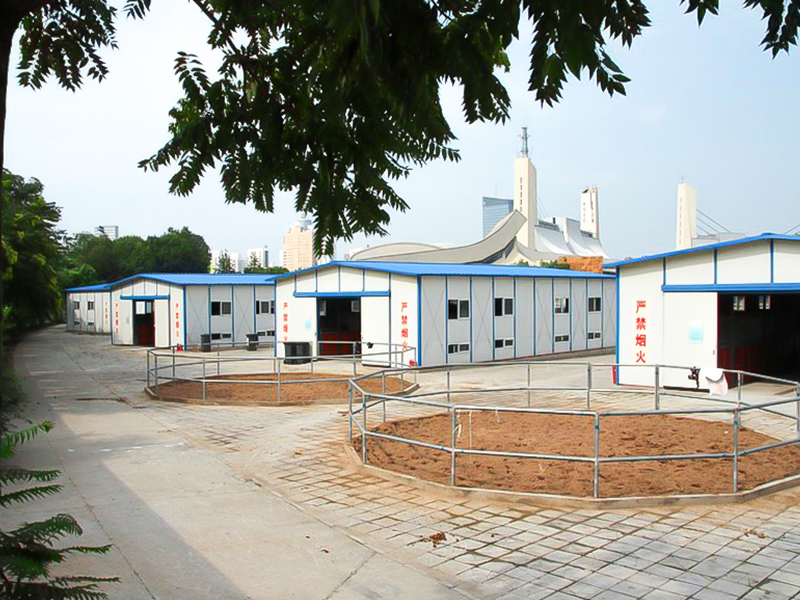

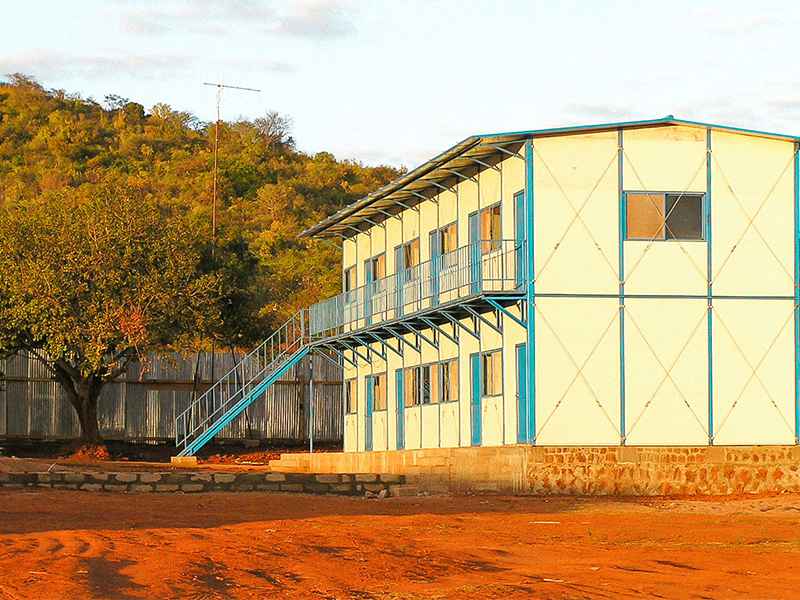

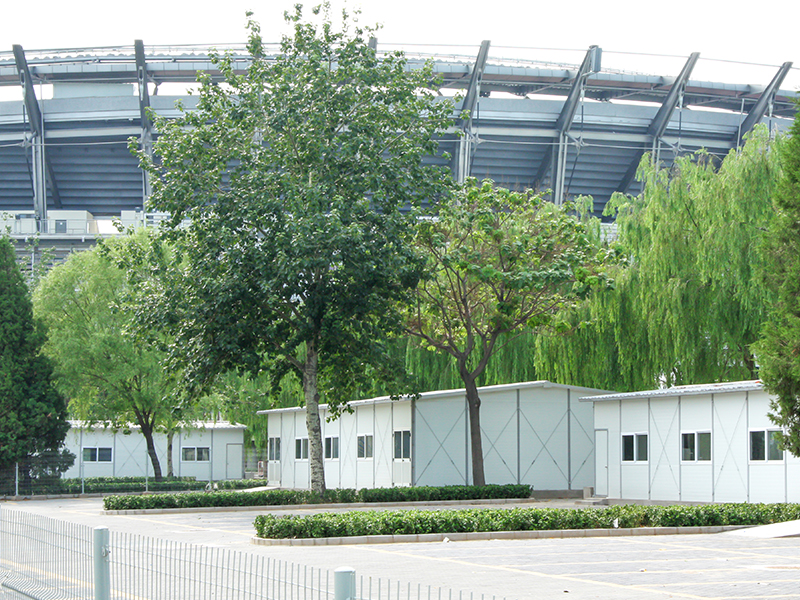

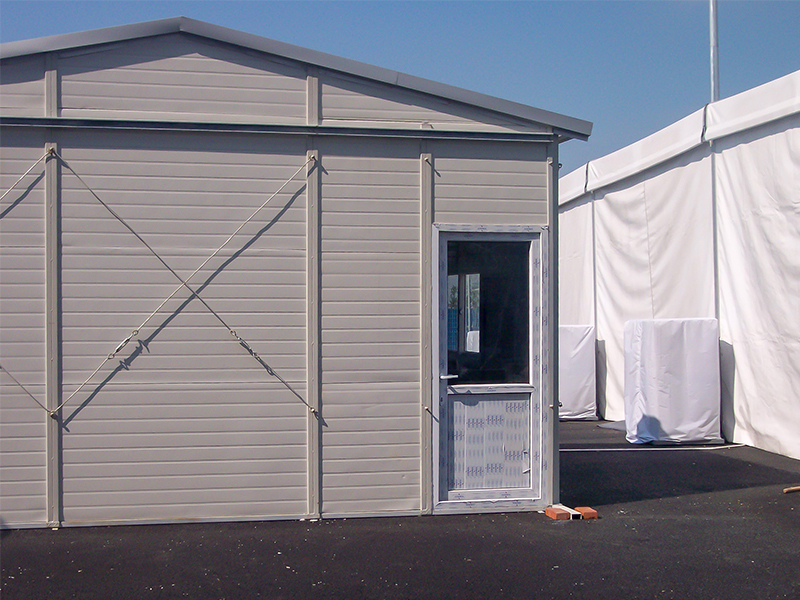

A Modular K-type house is a modular house whose width and length can be extended by adding a number of 1820mm units. The heat-insulated material can be EPS， Rock wool, Glass wool, or other sandwich panels. All the components are standard and prefabricated with the advantage of assembling and disassembling easily. Eight skilled workers can finish 100m2 in 8 hours. One 40HQ container can load about 250m2 house body materials. The waterproof design of the steel structure and heat insulation material ensures the house resists heavy wind load of 0.45KN/m2 and 7-degree seismic intensity.
All the components are standard and prefabricated with the advantage of assembling and disassembling easily. The life span of the house is 15 years. Ideal for house applications, temporary office, dormitory, classrooms, meeting room, warehouse, shops, etc. In the construction industry, the government purchase for residences, military housing, and another purpose. Characterized by low cost, durable structure, convenient relocation, easy to assemble and disassemble, environment protection, etc.
|1||Size||Length||NK+160(n=4, 5, 6^ ) K is modular(1K=1820mm)|
|2||Width||2K≤ Width≤ 6K, K is modular(1K=1820mm)|
|3||Wall Height||single floor height less than 6K|
|4||Roof Slope||1: 10, 1: 5|
|5||Interior Net Height||≥ 2780mm(not include false ceiling size)|
|6||Floor||≤ 3 floors|
|7||Standard||Ground Beam||C80# profiled steel|
|8||Post||double C80# profiled steel|
|9||Roof Beam||Herringbone Trussed Beam (jointing by C80# profiled steel)|
|10||Roof Purlin||40# angle iron|
|11||Wall Panel||50, 75mm thickness double color steel sandwich panel|
|12||Roof Panel||50, 75, 100mm thickness double color steel sandwich panel|
|13||Exterior Door||Steel frame sandwich panel door, szie: 820mm*2000mm|
|14||Interior Door||Sandwich panel door, size: 750*2000mm|
|15||Window||PVC sliding window, size: 1740mm*925mm|
|16||Floor||15mm thickness plywood|
|17||Options||Flase Ceiling||mineral wool acoustic panel, aluminium buckle panel|
|18||Window||PVC casement window, PVC top hung window, aluminium sliding window, aluminium alloy casement window, blind window|
|19||Door||Single opening security door, size: 900mm*2100mm;|
|double opening security door, size: 1740mm*2100mm; compound wooden door|
|20||Interior Electrical||supply plan, design and construction|
|21||Water Plumbing & Sanitary||supply plan, design and construction|
|22||Floor||15mm bamboo panel, building templet board|
|23||Floor Decoration Material||Ceramic tiles, PVC floor, compound wooden floor|
|24||Frame||Roof Dead Load||30kg/Sqm|
|25||Roof Live Load||50kg/Sqm|
|26||Floor Dead Load||50kg/Sqm|
|27||Floor Live Load||200kg/Sqm|
|28||Wind Resistance||11 degree (105km/h)|
|29||Fireproof Degree||Maintenance wall panel is nonflammable material, B1 degree;|
|Floor plywood could reach B1 degree after making fireproof process.|
|30||Earthquake resistant intensity||7degree|
1. Structure is reliable: Light steel structure system is safe and reliable, satisfied modern architecture concept.
2. Easy assembly and disassembly: The house can be assembled and disassembled many times, used repeatedly. It just need simple tools to assemble. Each worker can assemble 20-30square meters every day. 6 worker can finish 300sqm prefab house in 2 days.
3. Beautiful decoration: The prefab house is beautiful and grace, have bright and bland color, flat and neat board, with good decoration effect.
4. Flexible layout: Door and window can be assembled in any position, partition wall panel can be assemble in any transverse axes sites. Stair is assembled in outside.
5. Using life: All the light steel structures have antisepsis-spraying treatment. The normal using age are above 15 years.
6. Environmental protection and economy: Prefab house design is reasonable, easy to assemble and disassemble, used circularly, low wastage, without building rubbish. Average using cost is less than other kinds of building annually.
