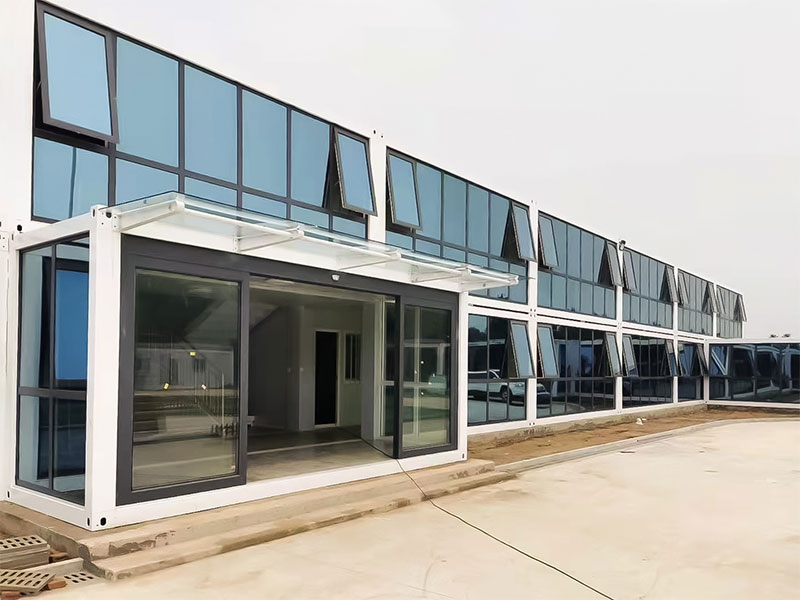

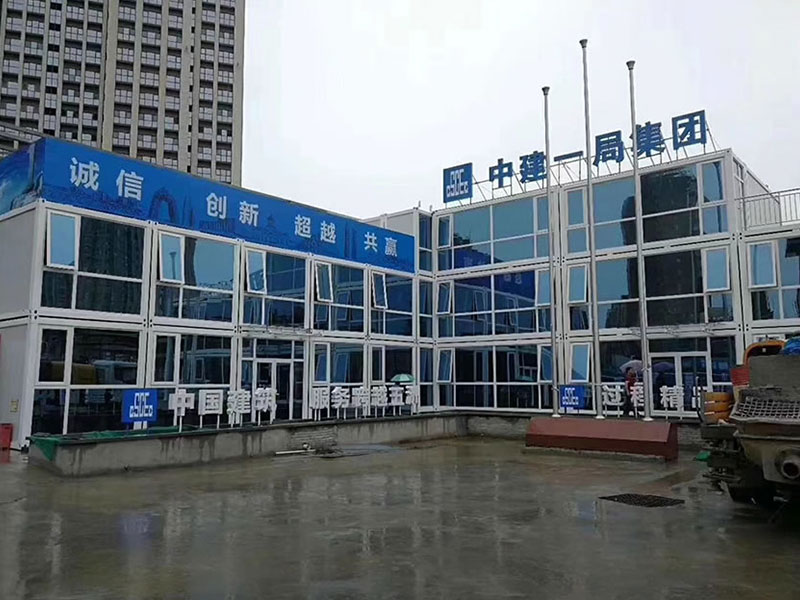

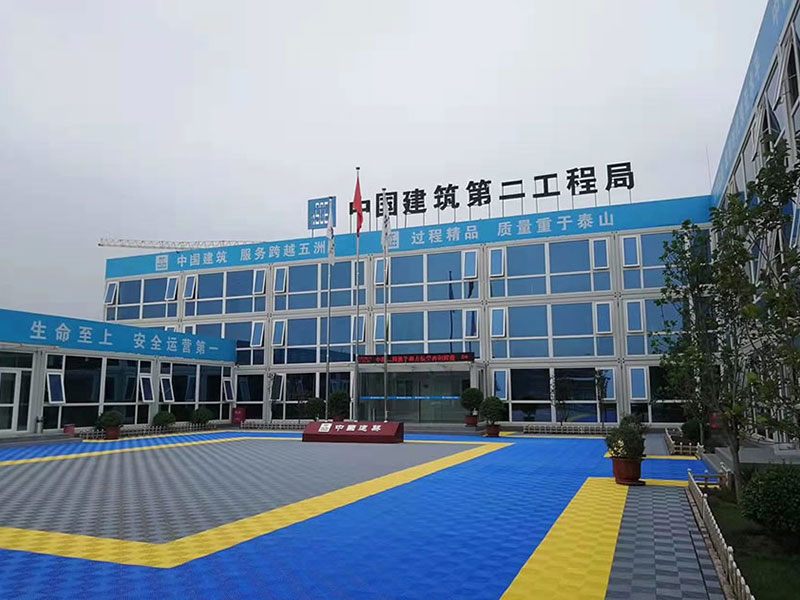

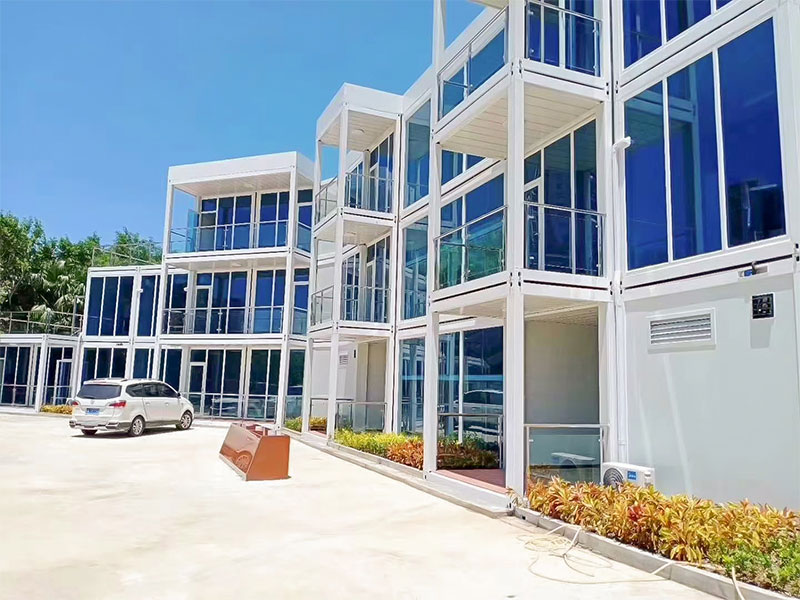

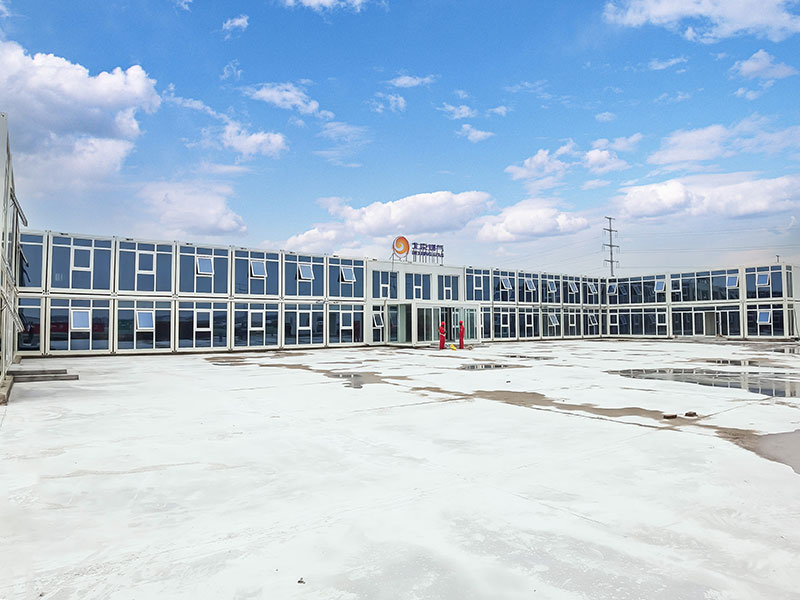

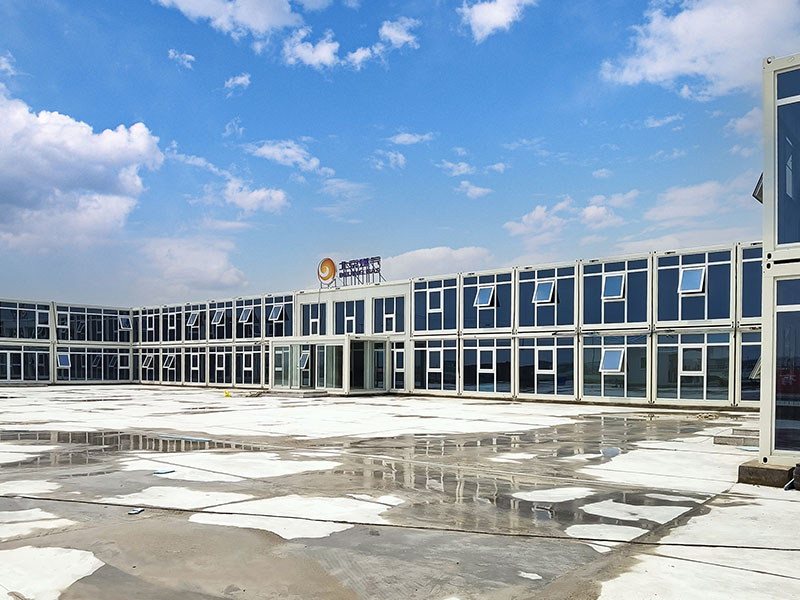

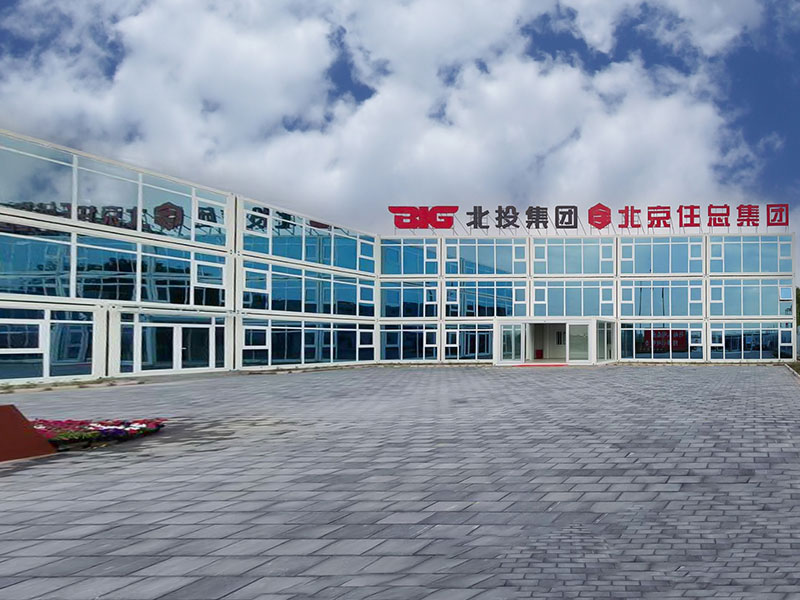

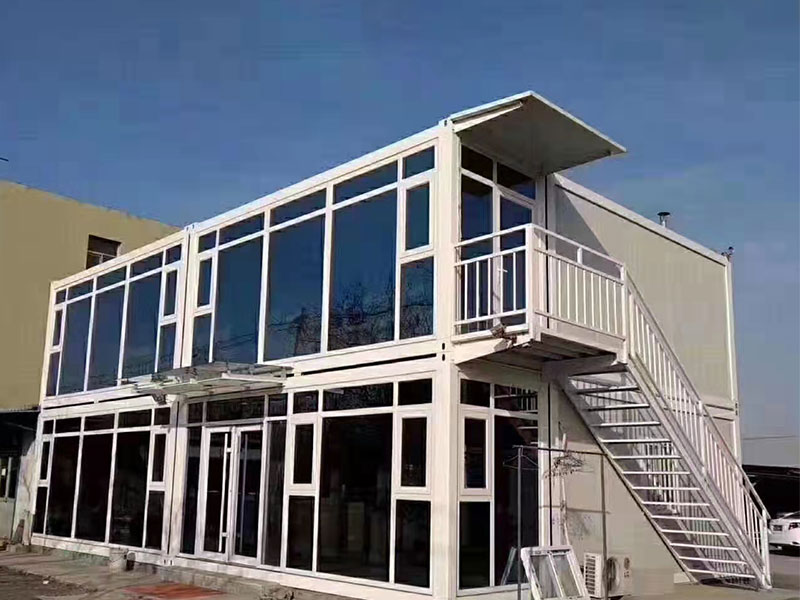

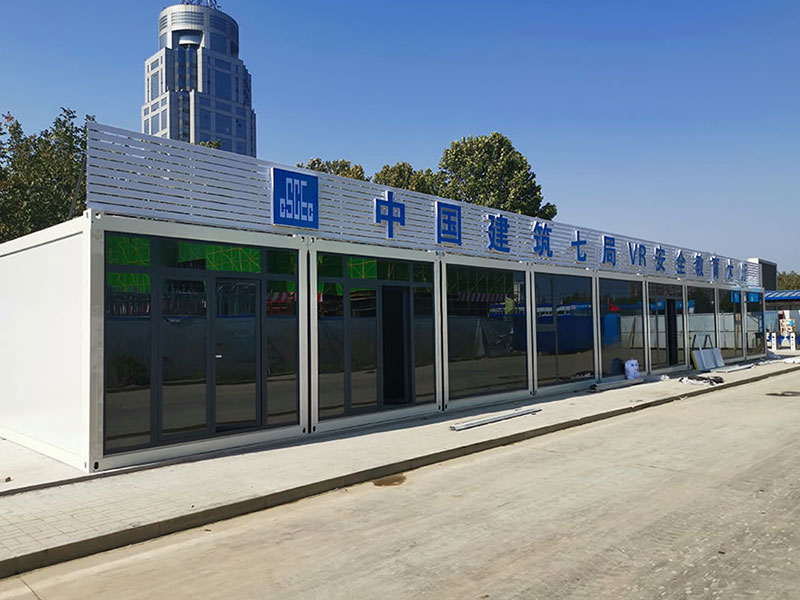

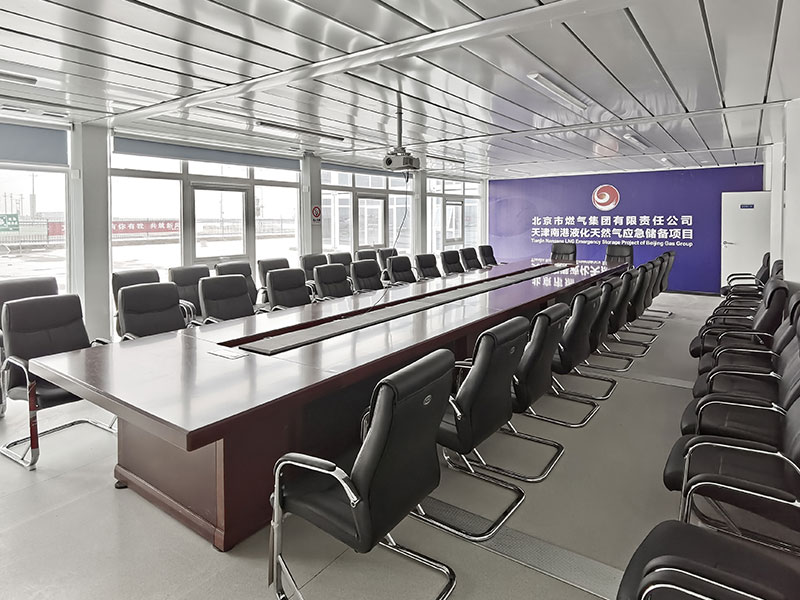

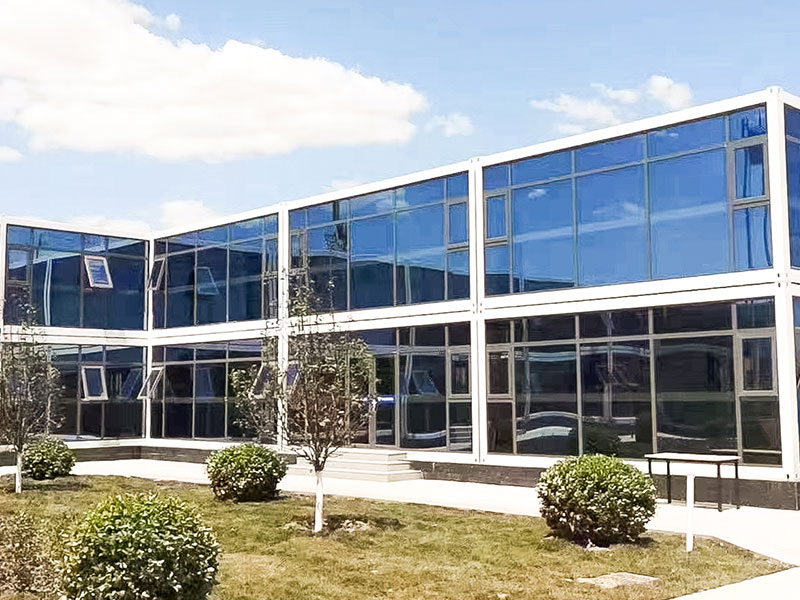

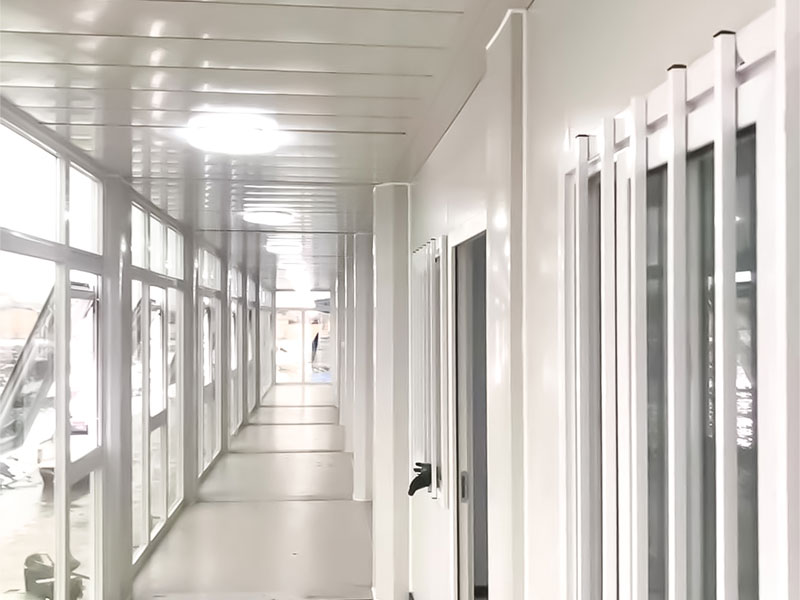

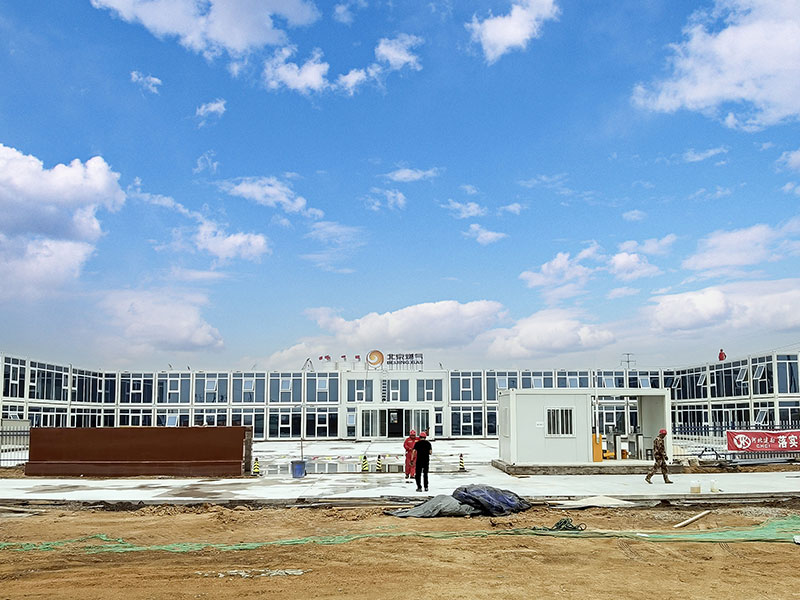

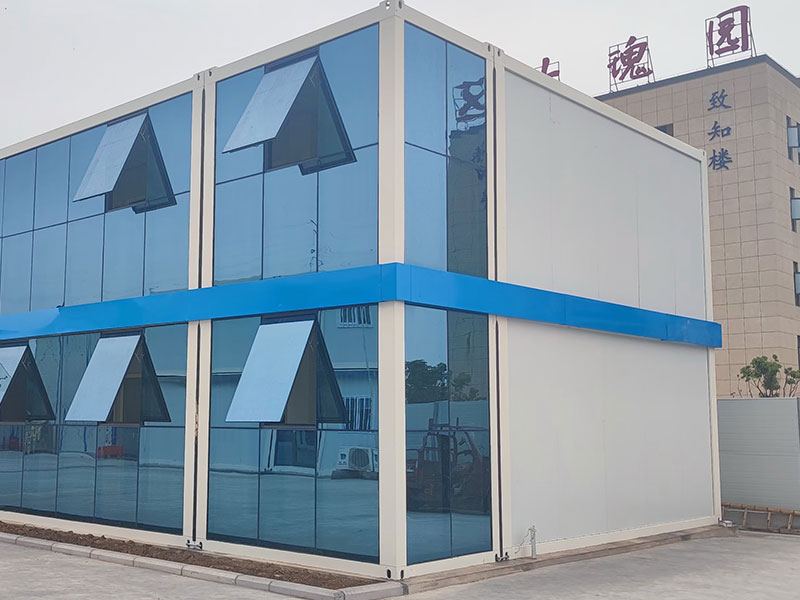

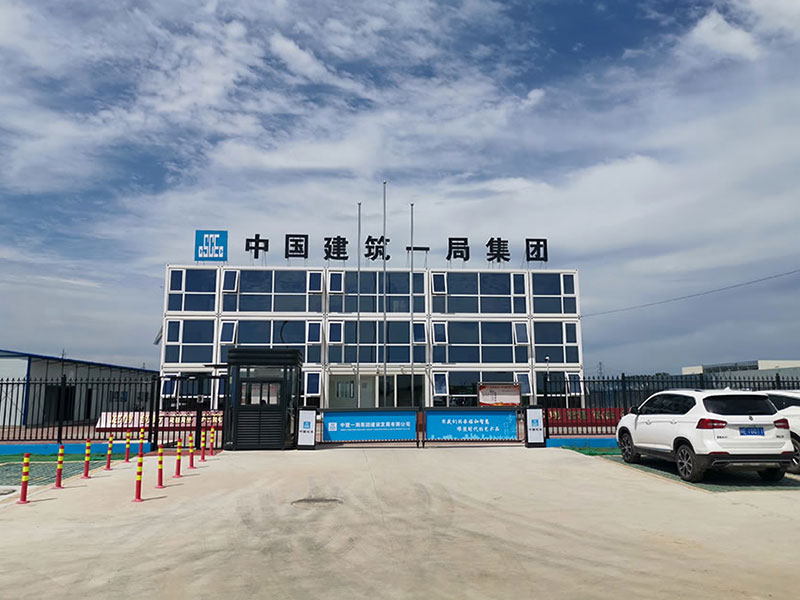

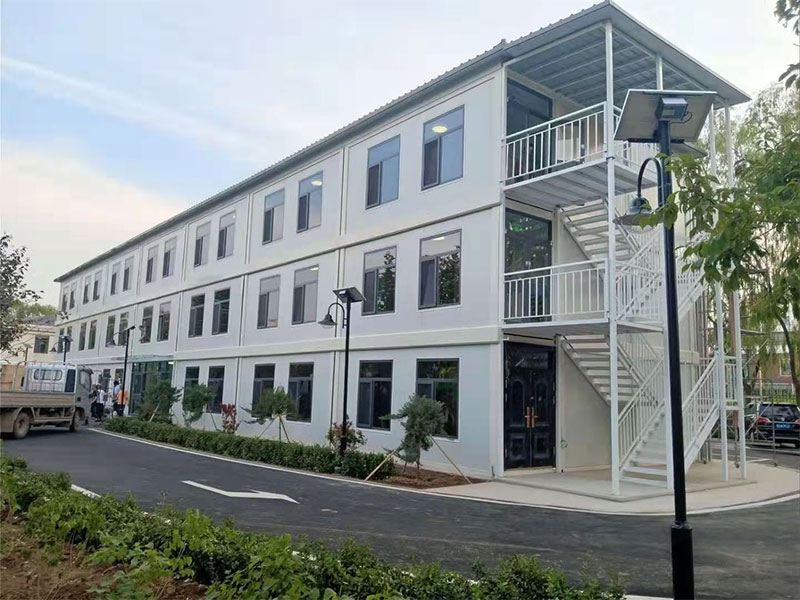

The office container adopts the current international popular container activity room design concept and manufacturing process with the characteristics of standardization, safe and stable structure, and economic flexibility. The construction office containers can be used in a single container or multiple containers front and rear the combination of up and down (can be built 2-3 layers). The containerized office high thermal insulation can create a good office and living environment for field workers. Ideal for construction site offices and residences, factory buildings, field workplaces, roof additional facilities, and other fields. The containerized office unit can be transported as a whole or compressed and packed. The roof, ground, and circuit system are completely prefabricated in the factory, so that the on-site installation is convenient and fast, and the time interval from building to use is shortened.
Office containers have strong adaptability to the environment and are easy to install on site. Container office rooms can be widely used as temporary offices, accommodation, integral kitchens, bathrooms, and other purposes for middle and high-grade requirements. According to the actual application, office containers should be equipped with an awning and other decorative accessories. At the project site, the construction time is very short, and transportation to the site can be used. The roof adopts a structural waterproof design to enhance the air tightness and water tightness of the house. Now this kind of office converted containers combines the modern residential architecture concept and is creating a new idea. The container construction office appearance has strong plasticity, can create through the design can show a variety of fashion appearance, delicate and beautiful.
5950mm(L)*2250mm (W)*2690 mm(H)(external size) 5700mm(L)*2020mm(W)*2390mm(H)(internal size)Or 6050mm(L)*2438mm (W)*2590 mm(H)(external size) 5875mm(L)*2255mm(W)*2325mm(H)(internal size)
Simple concrete foundation or solid floor slab required
Profile steel; Plywood/fiber cement panels+ vinyl/PVC surface flooring.
Frame structure: cold formed profile steel, 4mm thickness; Corrosion Protection: Polishing, derusting, sand blasting; Finishing coat: alkyd honed painting； Connected by bolts or screws.
Wall and roof boards
Sandwich panels, GI sheet, decoration panels, panels thickness will be 50mm, 75mm, or 100mm PU, EPS, Rockwool or others.
Sandwich panels, GI sheet, asphalt shingle. Panels thickness will be 50mm, 75mm, or 100mm PU, EPS, Rockwool or others.
Steel security doors or aluminium doors; The dimensions of doors are 800 X 1950 mm.
Wood, aluminum or sandwich panels doors.
Main material is PVC double glass sliding, aluminium, gypsum windows and etc;The window dimensions are 900/1100mm and they may vary upon request.
PVC ex-hanging panels, metal carved boards or MDF decorative boards and etc.
The electrical installation is hidden, laid in plaster depth. The cables are HES brand, for the fuses Siemens automates are used. For the sockets cables of 2 X 2.5, lighting 2 X 1.5 are used. The switches and sockets are VIKO brand. In each room, there is one switch and two sockets. Split air conditioning installation will be made at the container.
The installations are made plaster depth. Clean water piping are FIRAT brand. The tea furnace is chrome steel kitchen sink. Wash basins and lavatory bowls are DOGVIT brand.
Standard roof load
0.5KN/m2(can reinforce the structure as required)
Wind speed designing 210km/h (Chinese standard)
component long beam
3mm galvanized steel material
2.5mm galvanized steel sheet
column on the corner
3mm galvanized steel raw material
Z-shaped galvanized steel
18mm plywood panel+12mm laminated floor or 20mm cement-fiber +2mm vinyl flooring
Two forklift on the base to move from one site to another
If possible, we will add one or two external power holes on the roof panel.
|Item||Material and Specification||Size|
|Roof structure||roof beam||ss400-hdg hot dip galvanized profiled parts||5630mm*160*2.3mm|
|roof rail||ss401-hdg hot dip galvanized profiled parts||2680mm*160*2.3mm|
|roof square tube||50*50*1.8 hot dip galvanized|
|roof corner||45steel punching tee corner||5mm|
|roof frame square pipe||40*80*1.2 galvanized|
|roof frame square pipe||40*60*1.0 galvanized|
|roof tile||980type contianer special tile||0.45mm|
|ceiling tile||981type contianer special tile||0.25mm|
|pressure plate slot||1.2mm galvanized bending|
|Thermal insulartion material||glass wool|
|Base structure||base beam||ss400-hdg hot dip galvanized||5630mm*160*2.3mm|
|base rail||ss400-hdg hot dip galvanized||2680mm*160*2.3mm|
|base corner||45# steel stamping tee corner||4.7mm|
|base purlin||Hot dip galvanized square pipe 1.2mm||40*80*2990|
|base purlin||Hot dip galvanized square pipe 1.2mm||80*80*2990|
|floor||grade A fireproof glass magnesiu board||16mm|
|Corner column||corner column||2.3mm formed section||2480mm*160mm|
|Painting||Plastic spraying + paint baking||outdoor plastic powder||according to customer color requirements|
|Connector||bracket connecting screw||M12*30 strength grade 8.8|
|frame screw||M12*25 galvanized carrage screw|
|Wind resistant connector of frame body||M20|
|chassic screw||long rod galvanized screw||M10*100 M10*60|
|wall panel||wallboard||doubl-sided rock wool sandwich board||steel plate thickness:0.3mm|
|door and window||door||plastic-sprayed steel handle||with frame|
|window||aliminium alloy security window||Single glass aluminum profile window|
|decorative strip||roof corner line||3*3 aluminium alloy|
|coloumn corner line||plastic spraying inner arc aluminum profile||width:75mm|
|optional material: high-grrade decoration material||Item||Material||Remarks|
|PVC inner corner wall skirt||PVC|
|Flat iron sheet concealed ceiling||0.326 color steel|
|PVC engineering vinyl roll sheet||Refractory plastic||many colors is available|
|High grade hollow glass windows||plastic steel||Hollow tempered glass|
|glass curtain||aluminum alloy||customization|
|The electric box||famous brand|
|Double row leak protector|
|LED energy-saving lamp tube|
|Air conditioning socket 16A|
|USB socket * 4|
|Galvanized JDG pipe + connector|
|Single conductor||2.5Square MM, National Standard|
|Single conductor||2.5 Square MM National Standard|
|Single conductor||1.5Square MM National Standard|
|Memo||Note: Container toilets are made by aluminum-plastic board floor, stainless steel sink drainage system, all wood-plastic board baffle holes. Exhaust fans, blinds, etc. Shower container aluminum plastic board floor, PVC pipe shower head.|
