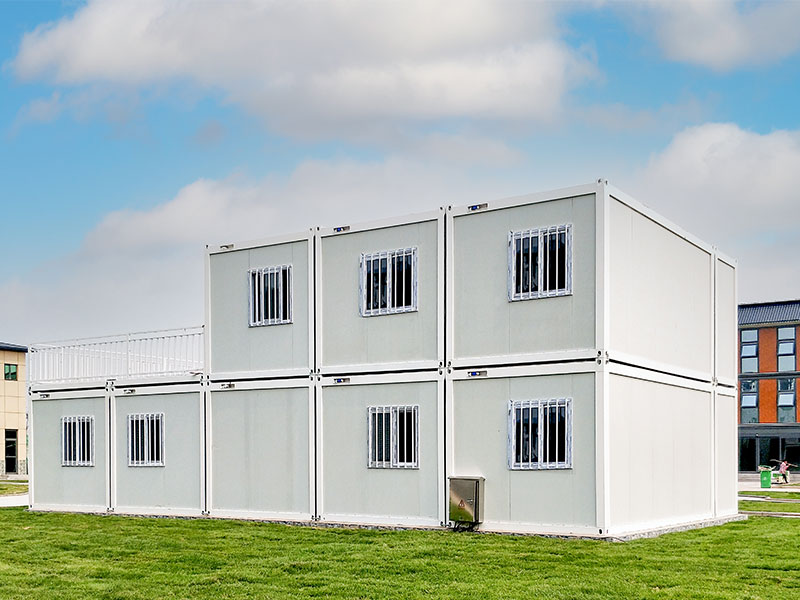

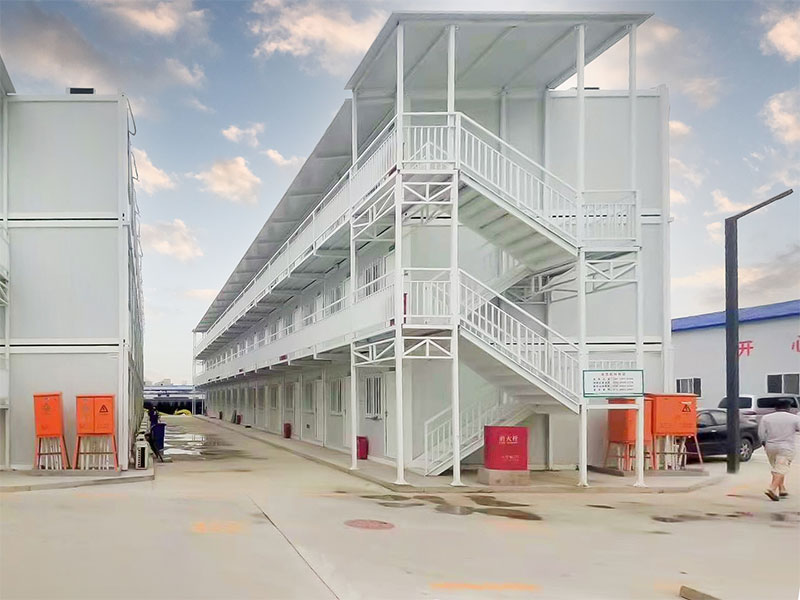

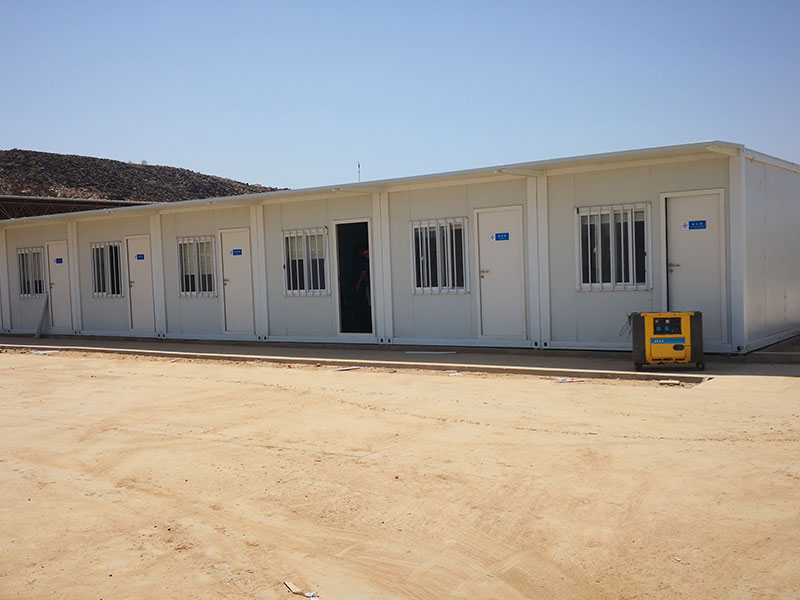

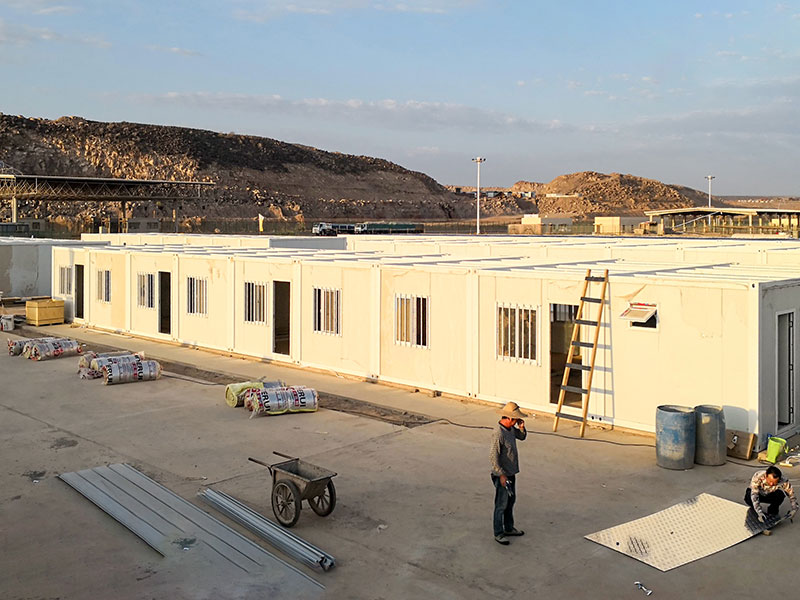

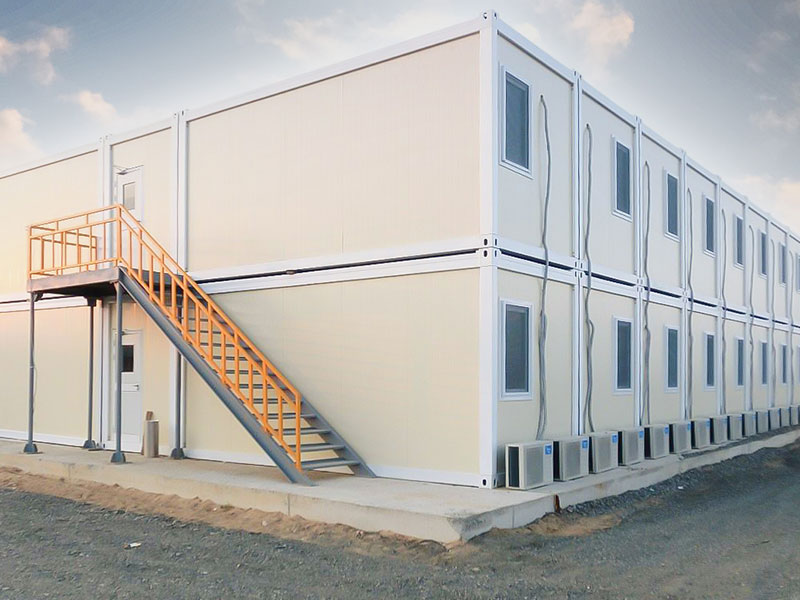

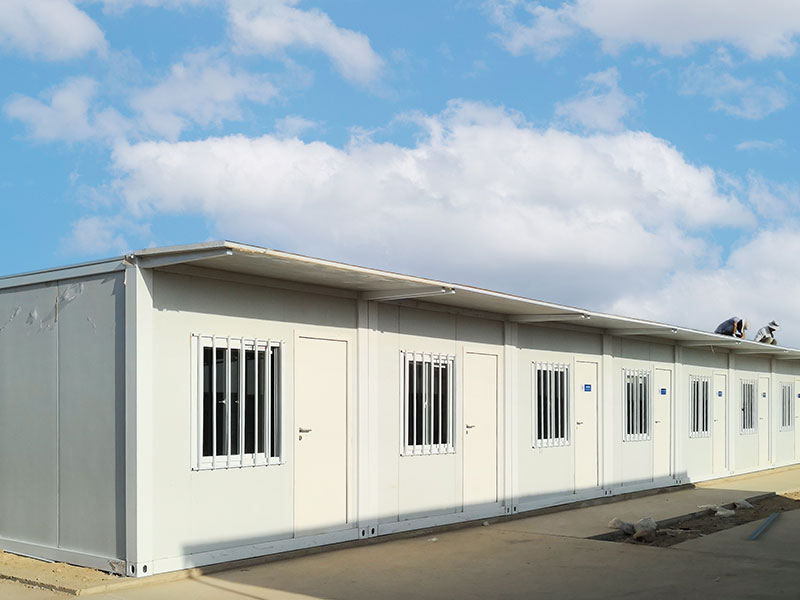

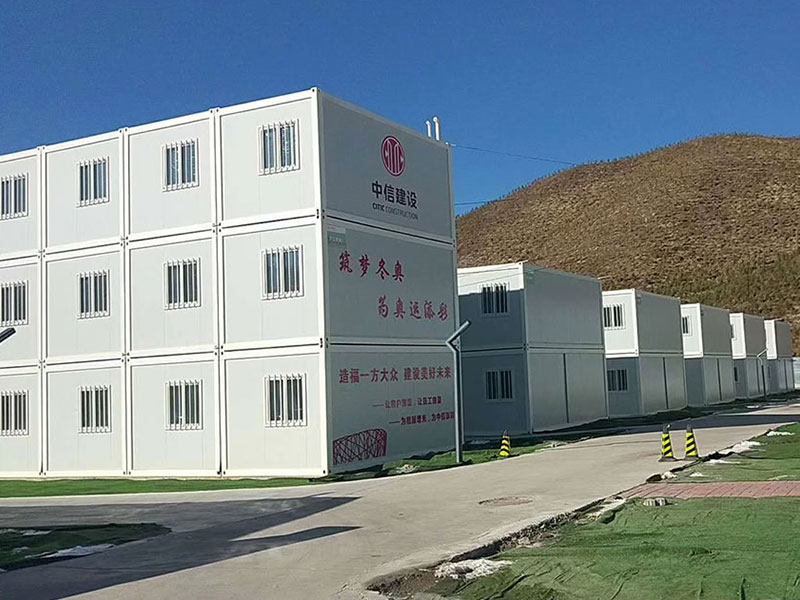

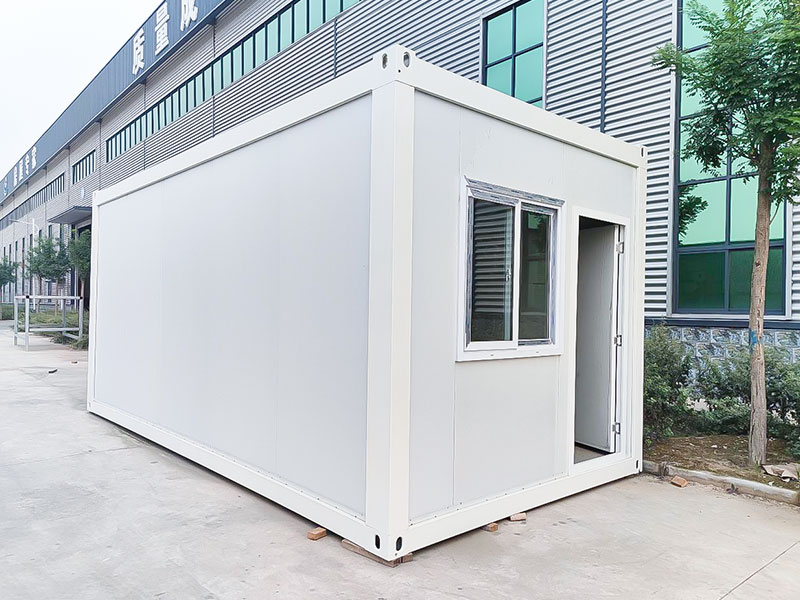

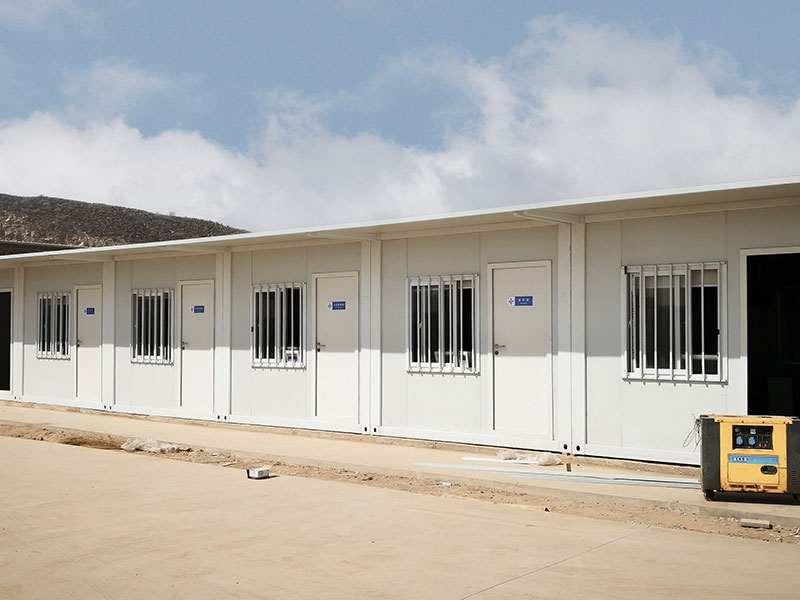

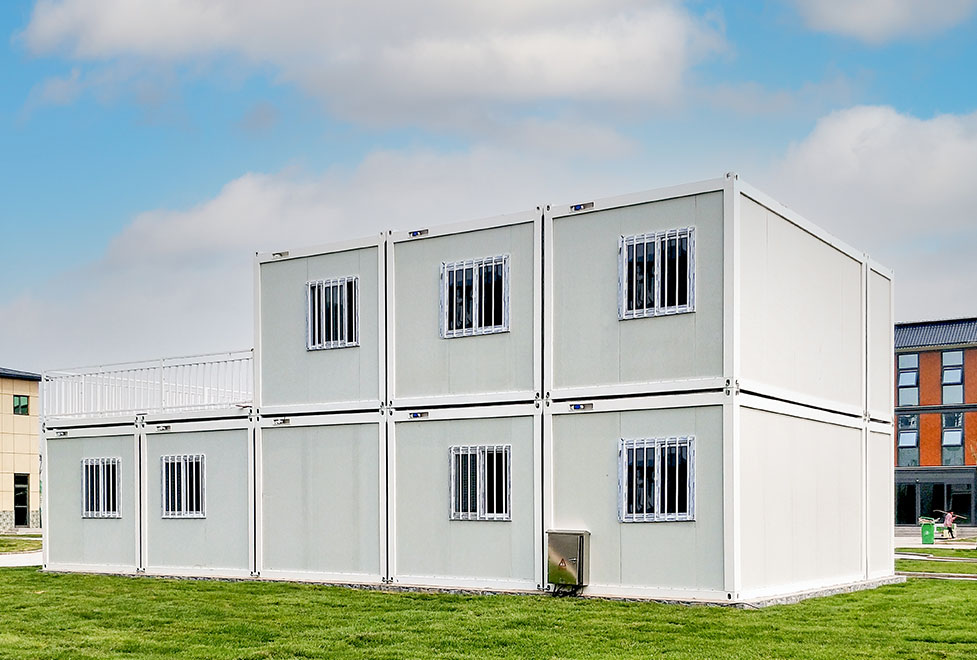

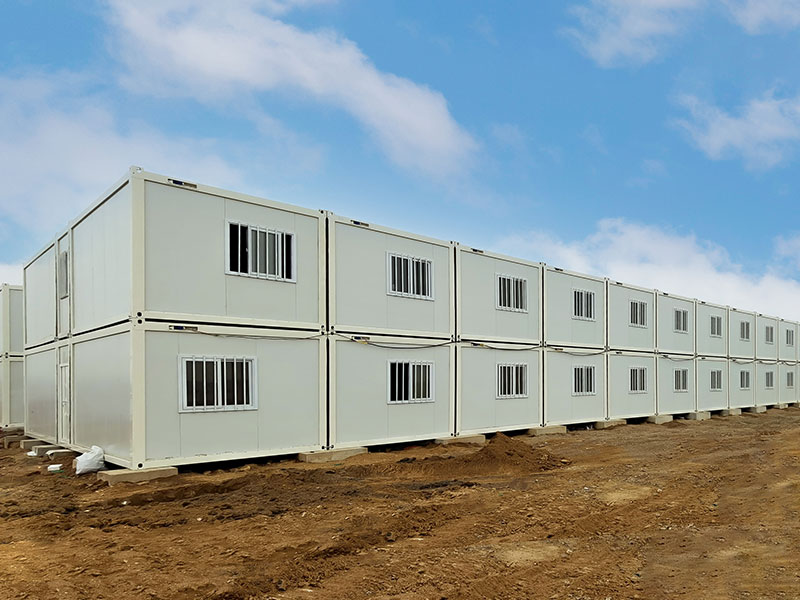

Dormitory Container

Product Parameters of Dormitory Container

• Specification

  Size	5950mm(L)*2250mm (W)*2690 mm(H)(external size) 5700mm(L)*2020mm(W)*2390mm(H)(internal size)Or 6050mm(L)*2438mm (W)*2590 mm(H)(external size) 5875mm(L)*2255mm(W)*2325mm(H)(internal size)
  Foundation	Simple concrete foundation or solid floor slab required
  Base	Profile steel; Plywood/fiber cement panels+ vinyl/PVC surface flooring.
  Steel frame	Frame structure: cold formed profile steel, 4mm thickness; Corrosion Protection: Polishing, derusting, sand blasting; Finishing coat: alkyd honed painting； Connected by bolts or screws.
  Wall and roof boards	Sandwich panels, GI sheet, decoration panels, panels thickness will be 50mm, 75mm, or 100mm PU, EPS, Rockwool or others.
  Roof	Sandwich panels, GI sheet, asphalt shingle. Panels thickness will be 50mm, 75mm, or 100mm PU, EPS, Rockwool or others.
  Outside doors	Steel security doors or aluminium doors; The dimensions of doors are 800 X 1950 mm.
  Interior doors	Wood, aluminum or sandwich panels doors.
  Windows	Main material is PVC double glass sliding, aluminium, gypsum windows and etc;The window dimensions are 900/1100mm and they may vary upon request.
  Exterior decoration	PVC ex-hanging panels, metal carved boards or MDF decorative boards and etc.
  Electricity	The electrical installation is hidden, laid in plaster depth. The cables are HES brand, for the fuses Siemens automates are used. For the sockets cables of 2 X 2.5, lighting 2 X 1.5 are used. The switches and sockets are VIKO brand. In each room, there is one switch and two sockets. Split air conditioning installation will be made at the container.
  Sanitary	The installations are made plaster depth. Clean water piping are FIRAT brand. The tea furnace is chrome steel kitchen sink. Wash basins and lavatory bowls are DOGVIT brand.
  Technical parameters
  Standard roof load	0.5KN/m2(can reinforce the structure as required)
  wind speed	Wind speed designing 210km/h (Chinese standard)
  seismic resistance	magnitudes 8
  Temperature suitable	temperature.-50°C~+50°C
  Fireproof	Grade 3
  component long beam	3mm galvanized steel material
  Weight	1950kgs
  short beam	2.5mm galvanized steel sheet
  column on the corner	3mm galvanized steel raw material
  secondary beam	Z-shaped galvanized steel
  Floor panel	18mm plywood panel+12mm laminated floor or 20mm cement-fiber +2mm vinyl flooring
  Forklift	Two forklift on the base to move from one site to another
  External power	If possible, we will add one or two external power holes on the roof panel.




• Parameters

  	Item	Material and Specification	Size
  Dimensions	External （L*W*H）	5950mm*3000mm*2800mm	Standard
  	Internal（L*W*H）	5800mm*2800mm*2500mm	Standard
  Roof structure	roof beam	ss400-hdg hot dip galvanized profiled parts	5630mm*160*2.3mm
  	roof rail	ss401-hdg hot dip galvanized profiled parts	2680mm*160*2.3mm
  	roof square tube	50*50*1.8 hot dip galvanized
  	roof corner	45steel punching tee corner	5mm
  	roof frame square pipe	40*80*1.2 galvanized
  	roof frame square pipe	40*60*1.0 galvanized
  	roof tile	980type contianer special tile	0.45mm
  	ceiling tile	981type contianer special tile	0.25mm
  	pressure plate slot	1.2mm galvanized bending
  	Thermal insulartion material	glass wool
  Base structure	base beam	ss400-hdg hot dip galvanized	5630mm*160*2.3mm
  	base rail	ss400-hdg hot dip galvanized	2680mm*160*2.3mm
  	base corner	45# steel stamping tee corner	4.7mm
  	base purlin	Hot dip galvanized square pipe 1.2mm	40*80*2990
  	base purlin	Hot dip galvanized square pipe 1.2mm	80*80*2990
  	floor	grade A fireproof glass magnesiu board	16mm
  Corner column	corner column	2.3mm formed section	2480mm*160mm
  Painting	Plastic spraying + paint baking	outdoor plastic powder	according to customer color requirements
  Connector	bracket connecting screw	M12*30  strength grade 8.8
  	frame screw	M12*25 galvanized carrage screw
  	Wind resistant connector of frame body	M20
  	chassic screw	long rod galvanized screw	M10*100 M10*60
  wall panel	wallboard	doubl-sided rock wool sandwich board	steel plate thickness:0.3mm
  door and window	door	plastic-sprayed steel handle	with frame
  	window	aliminium alloy security window	Single glass aluminum profile window
  decorative strip	roof corner line	3*3 aluminium alloy
  	coloumn corner line	plastic spraying  inner arc aluminum profile	width:75mm
  optional material: high-grrade decoration material	Item	Material	Remarks
  	PVC inner corner wall skirt	PVC
  	Flat iron sheet concealed ceiling	0.326 color steel
  	PVC engineering vinyl roll sheet	Refractory plastic	many colors is available
  	High grade hollow glass windows	plastic steel	Hollow tempered glass
  	glass curtain	aluminum alloy	customization
  electric equipment	Item	Brand
  	The electric box	famous brand
  	Double row leak protector
  	LED energy-saving lamp tube
  	An open
  	Air conditioning socket 16A
  	USB socket * 4
  	Galvanized JDG pipe + connector
  	Single conductor	2.5Square MM, National Standard
  	Single conductor	2.5 Square MM National Standard
  	Single conductor	1.5Square MM National Standard
  Memo	Note: Container toilets are the same for men and women. Aluminum-plastic board floor, stainless steel sink drainage system, all wood-plastic board baffle holes.  Exhaust fans, blinds, etc.  Shower container aluminum plastic board floor, PVC pipe shower head.
